Test cartridge for the determination of glycated hemoglobin A1c

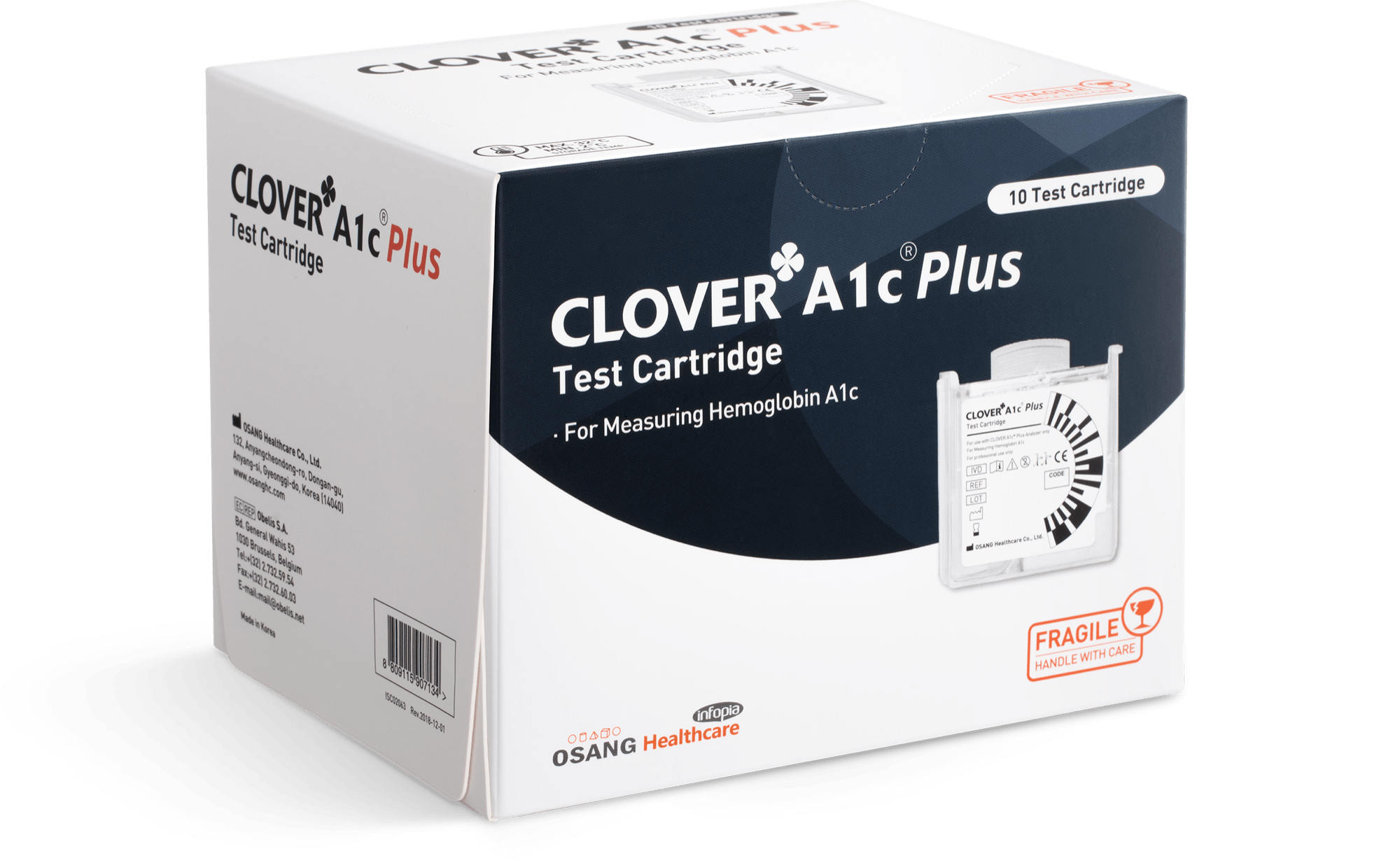

Clover A1c Plus Test Cartridge

  • Designed for Clover A1c Plus analyser

Clover A1c Plus Test Cartridge

Product information


    Description

    Intended use

    This cartridge, together with the analyser, can analyse samples of whole capillary blood or EDTA, venous blood treated with heparin. CLOVER A1c Plus cartridges and analyser are designed to support diabetes control. They are intended for use by patients, laboratory staff, clinics and hospitals.

    Principles of operation

    CLOVER A1c Plus system uses reflection spectrometry, ie fully automated boronate affinity methods to determine the percentage of A1c hemoglobin (HbA1c%) in whole blood (capillary or venous). The reaction solution contains components that lyse (dissolve) erythrocytes (red blood cells) and boronate resin, which binds cis-diols of glycated hemoglobin.

    1. Blood sample (4 μl) is applied to the collection area of ​​the reagent pack.
    2. The reagent pack is then inserted into a cassette in which red blood cells immediately dissolve (lyse) and release hemoglobin, with the boronate resin binding the glycated hemoglobin.
    3. The folded cassette is inserted into CLOVER A1c Plus analyser and rotated so that the blood sample mixture enters the cassette measuring zone, where the amount of total hemoglobin in the blood sample is photometrically measures by a reflectance photosensor consisting of a light emitting diode (LED) and a photodiode (PD-Photo Diode).
    4. The folded cassette is then rotated so that the wash solution washes the nonglycated hemoglobin from the blood sample so that the amount of glycated hemoglobin can be measured photometrically.

    Package contents

    • 10 pc

    Parameters

    Storage:

    • Store the test cartridge in a protective case until use.
    • Storage temperature: 2 ~ 32 °C (36 ~ 90 °F)
    • Storage humidity 10 to 90%
    • Do not freeze

    After opening the cartridge:

    • Use within 2 minutes after opening
    • Do not expose to direct sunlight
